Project 2:
Image Processing
COP3503C: Programming Fundamentals II
Spring 2025
1 Overview
Lots of applications need to process images in some way. Load them, store them, write them back out to files, scale them, rotate them, adjust the color in part (or all) of the image, etc. The purpose of this assignment is to show you how you can perform some of these operations on a particular type of file. In this assignment, you will:
• Read data from binary .tga files
• Process the image data stored within files in a variety of ways
• Write out the new .tga files in the same binary format
• Develop a command-line interface to handle user input
• Develop a Makefile to allow others to compile and run your project quickly and easily
2 TGA File Specification
It’s recommended to install at least one of the following programs if you do not already have a TGA viewer installed:
• Visual Studio: If you have installed Visual Studio, you should be able to click on a .tga file and have the file open up in a new Visual Studio tab.
• Photoshop: If you use the popular Photoshop image manipulation tool, you can use this program to view your outputted .tga files.
• GNU Image Manipulation Program (GIMP): A popular free and open-source image editor, GIMP will be able to open your .tga files and is completely free.
• TGAViewer: A small, cute little program whose job is just to view .tga files. How nice!
2.1 File Format
Since binary files are all about bytes, they are typically an unreadable mess to any program (or person) that doesn’t know exactly how the data is structured. In order to read them properly, you must have some sort of blueprint, schematic, or breakdown of how the information is stored. Without this description of the file format, you would just be reading random combinations of bytes attempting to get some useful information out of it—not the most productive process.
The TGA file format is a relatively simple format, though it has some options which can get a bit complex in some cases. The purpose of this assignment is not make you a master of this particular image format, so a few shortcuts will be taken (more on those later). First, let’s take a quick look at the file format, showcased in Table 2.1.

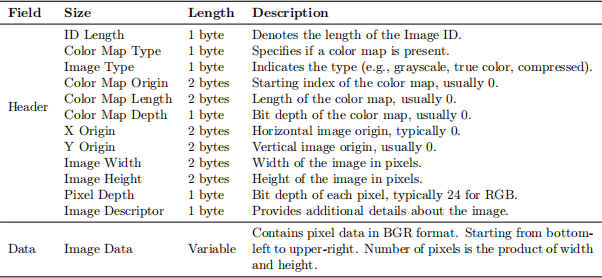

Table 2.1: File specification for TGA files.
So to start, there is a header. Every file format is potentially different, but in a TGA file the header data takes up 18 bytes total, across a number of variables, and this information describes the rest of the file. A possible structure for the header is shown in Listing 2.1.
1 struct Header {
2 char idLength;
3 char colorMapType;
4 char dataTypeCode;
5 short colorMapOrigin;
6 short colorMapLength;
7 char colorMapDepth;
8 short xOrigin;
9 short yOrigin;
10 short width;
11 short height;
12 char bitsPerPixel;
13 char imageDescriptor;
14 };
Listing 2.1: Example of using a C++ struct to hold header information.
Note that if you used char in your program, when you print out the char or unsigned char variable, you get a symbol that corresponds to its numeric value, instead of the number itself. If you want to see the numeric value of a char variable instead of its symbol, you would have to cast it to an integer, as shown in Listing 2.2.
1 char someVariable = 65;
2 cout << someVariable; // Prints out 'A' instead of 65
3 cout << (int)someVariable; // Prints out 65 instead of 'A'
Listing 2.2: Showcasing various methods of printing information about a character in C++.
2.2 TGA Image Data
After the header comes the really important part, the image data itself. In a TGA file, the image data is stored in a contiguous block of pixels. The number of pixels in the block is equal to the image’s length multiplied by the image’s width. The contents of a single pixel can vary depending on the properties of the file, but for this assignment we are using images with 24-bit color. This means that each pixel contains:
• 1 byte (8 bits) for blue data
• 1 byte (8 bits) for green data
• 1 byte (8 bits) for red data
Notice that the order of the color data is BGR, not RGB!
3 Milestone 1: Image Manipulations
! It is recommended to make functions to read and write the data from these files into a format your code can work with (Like a class/struct to represent a TGA image)! It is also recommended to make each task for milestone 1 into a function you can use on these images to make milestone 2 easier.
3.1 Algorithms
These algorithms are described in the Table 3.1. You will be implementing the formulas in the table in your own program. Each formula contains two values, P1 and P2. These represent the individual channel values of the two pixels used in the formula. Note that the order of the pixels matters for some algorithms - in these cases, the pixels in the "top layer" become P1, and the pixels in the "bottom layer" become P2. NP1 and NP2 refer to the normalized values of P1 and P2, as explained in subsection 3.2.
Note that these formulas should be calculated for each channel of the input images, and then used in each channel of the resulting output image. You will need to use the equations in autoreftable:formulas three times per pixel, one time per channel.
! Notice that although these correspond to the tasks denoted later this does not include all of them!

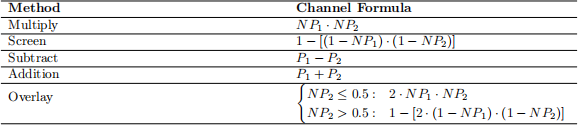

Table 3.1: Formulas for common manipulation algorithms.
Note that the "Overlay" method shown in Table 3.1 is a conditional algorithm, meaning the specific algorithm you’ll need to run varies based on the input pixel value. You can implement this in code using an if/else statement.
3.2 Clamping and Overflow
If you attempt to implement some of the above algorithms using the suggested unsigned char data type, you will experience overflow. This occurs when one of the above calculations results in a number below zero or greater than 255 - values which can not be stored by that data type.

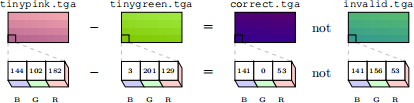

Figure 3.1: When clamping is not done, an entirely different image can arise. Notice how the green value is appropriately clamped to 0 in the correct image, while it overflows to 102 − 201 = −99 + 255 = 156 in the incorrect image.
3.3 Rounding
For operations involving multiplication, you will need to use normalized values. These values are the original values of the pixel divided by 255. Therefore, the range of a normalized pixel is 0-1. In these operations, you will likely need to use float to store the intermediate values. After the operation, you just need to multiply the resulting float by 255, and voilà, you have a new pixel value!
Keep in mind that operations involving float values will likely result in precision errors. Therefore, you should add 0.5f to the normalized value multiplied by 255, before converting to an unsigned char. Why 0.5f? This value is perfect for rounding numbers. Numbers closer to the next highest value (such as 79.7) will be rounded up (to 80, in our example). Numbers closer to the lower value (such as 79.2) will be rounded down (to 79).
3.4 Tasks
In this project, you are expected to complete ten different tasks, each of which use different input images and image manipulation algorithms. Your program should be able to complete all ten tasks and produce images that match the images given in the examples/ folder. The output names for all files you generate should be output/partX.tga, where X is the task number. For now, all tasks should complete whenever your project is built and ran. The user should not need to enter any input.
1. Use the Multiply blending mode to combine layer1.tga (top layer) with pattern1.tga (bottom layer).
2. Use the Subtract blending mode to combine layer2.tga (bottom layer) with car.tga (top layer).
3. Use the Multiply blending mode to combine layer1.tga with pattern2.tga, and store the results temporarily, in memory (aka, don’t write this to a file somewhere, just store the pixel values somewhere in your program). Load the image text.tga and, using that as the bottom layer, combine it with the previous results of layer1/pattern2 using the Screen blending mode.
4. Multiply layer2.tga with circles.tga, and store it. Load pattern2.tga and, using that as the bottom layer, combine it with the previous result using the Subtract blending mode.
5. Combine layer1.tga (as the top layer) with pattern1.tga using the Overlay blending mode.
6. Load car.tga and add 200 to the green channel.
7. Load car.tga and scale (multiply) the red channel by 4, and the blue channel by 0. This will increase the intensity of any red in the image, while negating any blue it may have.
8. Load car.tga and write each channel to a separate file: the red channel should be part8_r.tga, the green channel should be part8_g.tga, and the blue channel should be part8_b.tga. (Hint: If your red channel image appears all red, try writing [Red, Red, Red] instead of [Red, 0, 0] to the file—ditto for green and blue!)
9. Load layer_red.tga, layer_green.tga and layer_blue.tga, and combine the three files into one file. The data from layer_red.tga is the red channel of the new image, layer_green is green, and layer_blue is blue.
10. Load text2.tga, and rotate it 180 degrees, flipping it upside down. This is easier than you think! Try diagramming the data of an image (such as earlier in this document). What would the data look like if you flipped it? Now, how to write some code to accomplish that...?
3.5 Makefile
In your submission for this project, you will need to create a Makefile. This is a small file that allows us to build your project instantly, without needing to run any of our own commands. For this project, you will write a Makefile with just one rule to start. This rule should generate an executable named project2.out.
When you run make, the program looks for a Makefile in your current directory. If it finds one, it executes the top rule. A rule is a series of steps that executes based on a keyword. Here is an example of a Makefile with two rules:
1 build:
2 g++ -o MyProgram main.cpp FileReader.cpp FileDataBase.cpp UI.cpp UIControl.cpp
3
4 clean:
5 rm a.out
6 rm output
3.6 Submission
To submit your first milestone, submit your project zip file to the Milestone 1 assignment in Gradescope. For more information about how to package your project and submit to the Gradescope platform, see Appendix C. For details on grading, see Appendix B.
4 Milestone 2: Command-Line Interface
! This is the second part of the project, and is due after the first part is due. You should not start this part until you have completed the first part.
4.1 Goals
The first step in developing your command-line interface is removing the code that automatically runs the ten tasks listed in part two of the assignment. You don’t have to delete the code for these tasks from the project, but they should no longer execute automatically. Before building the command-line interface, build your project and run it with no arguments to make sure none of the ten tasks execute automatically.
The interface should not do anything other than what the user asks. If the user supplies only the --help argument, then simply print the help message and exit. If the user asks to multiply two images using the multiply method, then proceed with that method, and then exit.
4.2 Developing The Interface
Now that you have access to your command-line, we can begin work on building the actual command line interface. Your interface should use the argc and argv features of C++ to handle command-line arguments, as discussed in class.
This section will discuss what methods you will need to implement in your interface, how arguments are passed to those methods, and the actual specification itself.
4.2.1 Tracking Image
Just like the tasks you completed in Part 2, a user can request multiple image operations to be done one after the other, using the output of the previous step as an input to the next step. In order to support this, your command-line interface will need to keep track of a "tracking image." This is what will be written to the output filename once all the image manipulations have been done on this image.
The initial source for this tracking image will be given to you as the second argument (explained more later in ??). It is recommended to load in the data from the source file into your tracking image first. Then read all the image manipulation algorithms requested by the user, in order. These algorithms will take in the tracking image as an input, and then the tracking image will be set to the output of the algorithm. In other words, each image manipulation algorithm will "act" on the tracking image.
4.2.2 Methods
You will need to implement several methods in your CLI that the user can call. The methods are discussed below.
• multiply: This method takes one additional argument, the second image to use in the multipli-cation process, alongside your tracking image.
• subtract: This method takes one additional argument, the second image to use in the subtract algorithm, alongside your tracking image. The first image, the tracking image, will be the top layer. The additional image argument constitutes the bottom layer.
• overlay: This method takes one additional argument, the second image to use in the overlay algorithm, alongside your tracking image. The first image, the tracking image, will be the top layer. The additional image argument constitutes the bottom layer.
• screen: This method takes one additional argument, the second image to use in the screen algorithm, alongside your tracking image. The first image, the tracking image, will be the bottom layer. The additional image argument constitutes the top layer.
• combine: This method is similar to what you did in task 9 of Part 2, where three individual files each provide one channel of the resulting image. This method takes two additional arguments, the source for the green layer (the first additional argument), and the source for the blue layer (the second additional argument). The source for the red layer is the tracking image.
• flip: This method takes no additional argument, and simply flips the tracking image.
• onlyred: This method takes no additional arguments, and simply retrieves the red channel from the image, similar to how you did in task 8.
• onlygreen: This method takes no additional arguments, and simply retrieves the green channel from the image, similar to how you did in task 8.
• onlyblue: This method takes no additional arguments, and simply retrieves the blue channel from the image, similar to how you did in task 8.
• addred: This method adds a certain value to the red channel of an image. This method takes one additional argument, the amount to add to the red channel. This will need to be converted to an integer.
• addgreen: This method adds a certain value to the green channel of an image. This method takes one additional argument, the amount to add to the green channel. This will need to be converted to an integer.
• addblue: This method adds a certain value to the blue channel of an image. This method takes one additional argument, the amount to add to the blue channel. This will need to be converted to an integer.
• scalered: This method scales the red channel of an image. This method takes one additional argument, the amount to scale the red channel. This will need to be converted to an integer.
• scalegreen: This method scales the green channel of an image. This method takes one additional argument, the amount to scale the green channel. This will need to be converted to an integer.
• scaleblue: This method scales the blue channel of an image. This method takes one additional argument, the amount to scale the blue channel. This will need to be converted to an integer.
Each of the final six operations listed accept an integer as an additional argument. For addred, addgreen, and addblue, you should be able to accept negative integers. You should ensure that the pixel value never falls out of the 0-255 range, clamping as appropriately, as described in subsection 3.2.
4.2.3 Error Handling
Your program should be able to handle commands in the following format:
• If no arguments are provided, or if the first and only argument is --help, print the help message.
Project 2: Image Processing, Fall 2023
Usage:
./project2.out [output] [firstImage] [method] [...]
Your help message should be exactly the same for the tests to pass. Note that the final line in the help message is indented with a tab character, not several spaces or another character. You are expected to use this character as well.
• The first argument will be the name of the output file. If the argument does not end with .tga, print "Invalid file name." If this argument is missing, you should proceed with the bullet point above.
• The second argument will be the name of the source file for your tracking image. If this argument is not provided, or if the argument does not end with .tga, print "Invalid file name." If the filename is not a real file, then print "File does not exist."
• The next few messages will be for any errors with the arguments of any method:
– Nonexistent method name: "Invalid method name."
– Missing an argument: "Missing argument."
– Invalid file input: "Invalid argument, invalid file name."
– Nonexistent file input: "Invalid argument, file does not exist."
– Non-integer argument input: "Invalid argument, expected a number."
For commands that are not invalid (commands where some image manipulation is successfully done), the output of the command does not matter. You can print whatever you like!
4.3 Submission
At this point, you should have a completed command-line interface to your image manipulation program. It should be able to handle variable file names and variable arguments, and should not run anything automatically. This should allow to pass several of the tasks you will be tested on.
Again, Gradescope will be used to test out your command-line interface. There are three areas you will be tested on. Like Milestone 1, there are ten individual tasks, some of which you will add to your Makefile using your new command line arguments, and others will be compiled by Gradescope after you submit your submission. You won’t know some of the arguments your program is tested with.
• Help Message and Error Messages: Your program should produce the correct help message when requested, and your program should produce the correct error messages when invalid argu ments are supplied.
• Tasks 11-13: As described below, you will add three new tasks into your Makefile under a new rule named tasks. Gradescope will expect that after this rule is called, the images for tasks 11-13 will be generated.
• Tasks 14-20: Gradescope will call your command-line interface with variable arguments. Tasks 14-16 will have their arguments shown, while tasks 17-20 will have their arguments hidden. Your program should be able to handle these arguments and produce the correct images.
11. Multiply circles.tga with layer1.tga.
12. Flip (or, rotate 180 degrees) layer1.tga.
13. Subtract layer2.tga (bottom layer) from layer1.tga (top layer).
Tasks 14-16 will be executed by Gradescope calling your executable with the necessary command-line arguments. For debug purposes, they are listed below:
14. Flip car.tga four times.
15. Subtract layer1.tga from car.tga, then multiply the output with circles.tga, then flip it.
16. Given car.tga, scale its blue channel by 3, its red channel by 2, and its green channel by 0.
Tasks 17-20 have been hidden from you. Gradescope will call your executable with the necessary command-line arguments.
